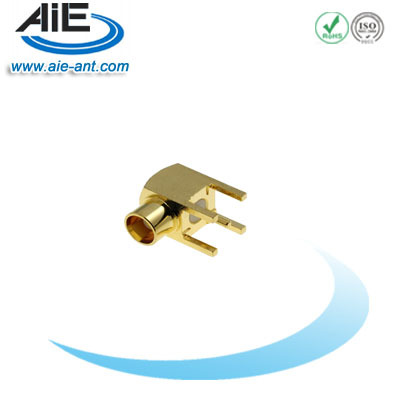

Model:AIE-MCXWF-PCB
| Major Technical Characteristics | |
| Frequency Range | DC～6GHz |
| Impedance | 50Ω |
| Type | MCX right angle female for PCB |
| Center conductor retention force | ≥0.28N |
| Insertion Loss | 0.18dB（1GHz） |
| Voltage Standing Wave Ratio Straight | ≤1.20/1GHz |
| Right angle | ≤1.45/1GHz |
| Durability(mating) | ≥500(cycles) |
| Cable | PCB |
| Material & Plating | |
| Body Brass | Gold plated |
| Pin contact Tin bronze | Gold plated |
| Resilient contact Beryllium-copper | Gold plated |
| Socket contact Beryllium or tin bronze | Gold plated |
| Insulator | PTFE |
| Crimp ferrule Copper alloy | Nickel or gold plated |
| O-ring sealing | 6146 silicone rubber |
